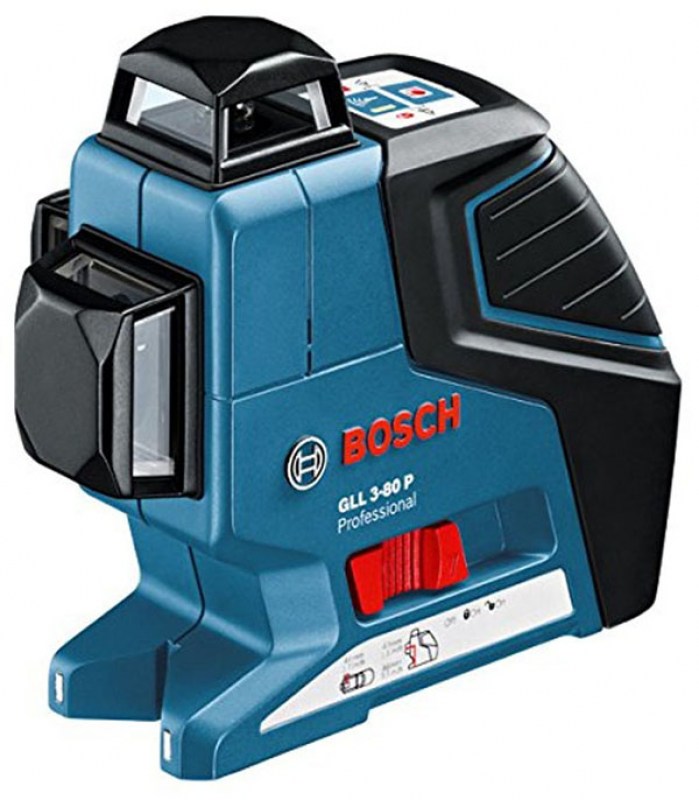

Bosch Line lasers

3 x 360° for visibility on a new level
High visual clarity is provided by high-powered diodes
3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work
Intuitive user interface offers easy operation

Additional data
Working range with receiver, value
120 m
Accuracy
± 0.3 mm/m*/** (*for the four horizontal intersection points; **plus use-dependent deviation)
Projection
3 x 360° line
Laser diode
Line: 630 - 650 nm, < 10mW
Operating temperature
-10 – 40 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range
up to 30 m
Working range with receiver
up to 120 m
Working range without receiver
up to 30 m
Self-levelling range
± 4°
Levelling time
4 s
Dust and splash protection
IP 54
Power supply
4 x 1.5 V LR6 (AA)
Operating time (max.)
4 h in 3-line mode
Tripod thread
1/4", 5/8"
Weight, approx.
0.82 kg
Colour of laser line
red
Compatible laser receivers
LR 6 + 7
Working range, value
30 m
