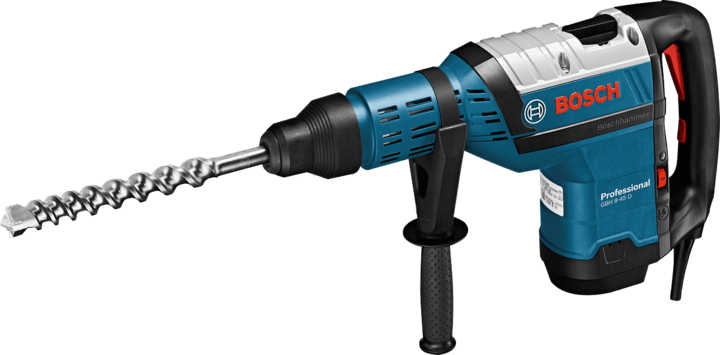

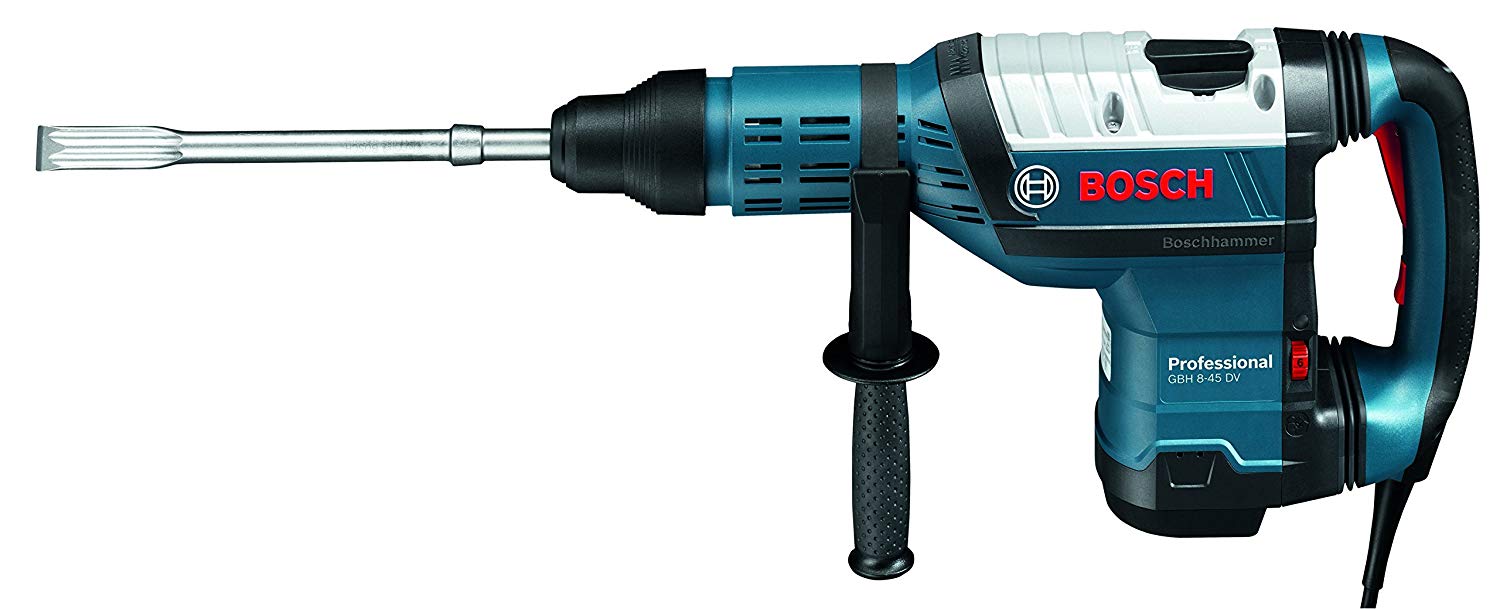

Bosch Rotary Hammer SDS Max

Technical Specifications

Nominal Input Power 1,500 Watts Impact Power 12.5 joules Nominal RPM 1,380 – 2,760 BPM

Nominal RPM 0-305 RPM

Weight 8.9 kg

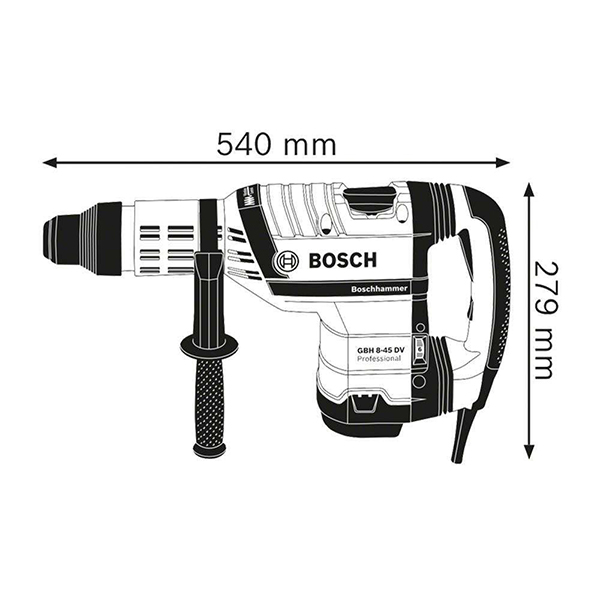

Tool Dimensions (Width) 116 mm Tool Dimensions (Length) 540 mm Tool Dimensions (Height) 310 mm

SDS max Tool Stabilizer Drilling Range Drilling Diameter in Concrete,

Hammer Drill Bits 12 - 45 mm Ideal application range in concrete,

Hammer Drill Bits 20-40mm Drilling Diameter In Concrete,

Drill Bits 80mm Diameter

Drilling Into Concrete With Core Cutters 125mm

Total values ​​of vibration (drilling in concrete) value of vibration emissions ah 8 m/sec²

Unevenness K 1.5 m/sec²

Vibration total values ​​(chisel tapping) Vibration emissions ah value 7 m/sec²
Tolerance K 1.5 m/sec²

Advantages
Large power 1500W with little vibration

Excellent performance during drilling and chiselling thanks to a 1500W motor and 12.5 joules of single stroke energy Low vibrations of just 7 m/
sec when chiselling and 8 m/sec² when drilling thanks to a three-stage intelligent vibration damping system Turbo Power function for power Additional
use during the use of the chisel through the additional use of energy that is used in the drill to provide rotational motion.
