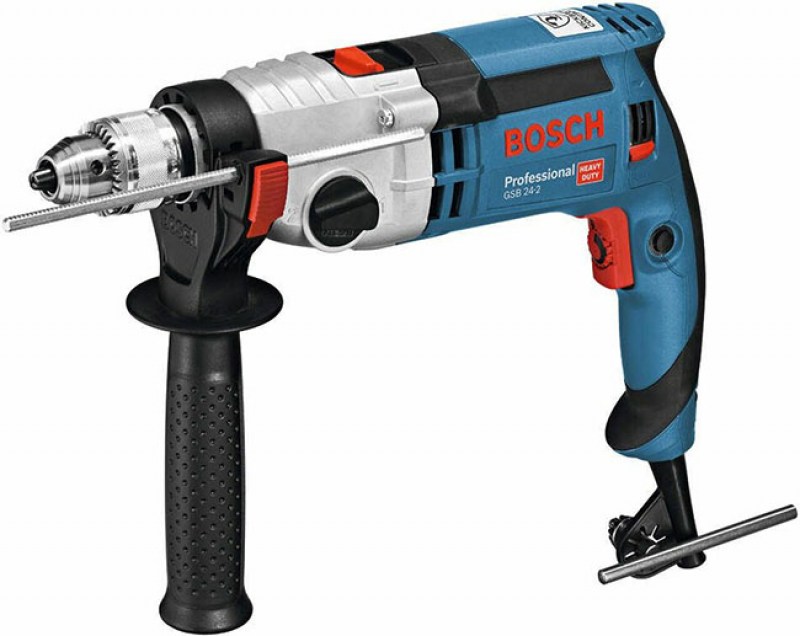

Bosch Impact Drill automatic head

The most powerful device in its class – for the most heavy-duty applications

Bosch high-performance motor (1100W) with high torque for very heavy-duty applications with large diameters (drilling, using hollow drill bits and hole drilling), screwing, loosening and mixing
Durable metal gear case for long life
Mechanical anti-rotation clutch with overload protection for a high level of working safety even under the most demanding applications

Technical Specifications
Nominal Income Capacity 1,100 watts
the weight 2.85 kg
the offer 81 mm
height 363 mm
Height 220 mm
Nominal number of turns 580 / 1,900 rpm
nominal torque 9.6 / 3.2 Nm
tightening range 1.5 - 13 mm
Max torque 40.0 / 14.5 Nm
No. of laps without load, first gear, up to 0 - 900 RPM
No. of laps without load, second gear 3,000 RPM
power output 630 W
Rotary auger shaft thread 1/2" - 20 UNF
Number of roads with number of laps without load 0 – 15,300 / 51,000 beats per minute
Hole range
The diameter of the hole in the walls 24 / 16 mm
Hole diameter in cement 22 / 13 mm
The diameter of the hole in the wood 40 / 25 mm
Hole diameter in steel 16 / 8 mm
Total values ​​of vibration (hole in metal)
Vibration emissions value ah 5.6 m/sec²
Tolerance K 1.5 m/sec²
Total Vibration (Hammer Hole in Concrete)
Vibration emissions value ah 14.6 m/sec²
Tolerance K 1.8 m/sec²
Vibration total values ​​(bolts)
Vibration emissions value ah 2.5 m/sec²
Tolerance K 1.5 m/sec²
